MicroSport™ LowBed™ Trailer

The MicroSport™ LowBed™ Trailer is designed to make loading heavy kayaks and gear easier and safer, thanks to its lowered 22-inch load bar height. With a galvanized marine-grade build, you can confidently back it down boat ramps for direct water launches. It holds up to six kayaks on 78” load bars, features submersible LED lights, and supports up to 800 lbs. DOT and Transport Canada approved, it assembles in about three to four hours using standard tools. Backed by a five-year warranty, it’s proudly made in the USA.

• Pre-assembled hubs for a clean and simple installation

• 12" galvanized wheels with marine grade sealed bearings

• Reinforced steel tongue can transport boats up to 20' in length

• 78’’ steel, 1 ¼’’ square load bars featuring d-ring tie-downs

• 11 gauge pre-galvanized steel construction for years of service

• Made in the USA

• Five Year Limited Warranty

Specifications:

• Load Capacity: 800 lb / 20' canoe or kayak

• Dimensions - Length: 159"

• Dimensions - Width (without crossbars): 55"

• Dimensions - Width (with crossbars): 78"

• Dimensions - Width of Assembled Frame (Within Fenders): 40"

• Dimensions - Height of Cross Bars from Ground: 22"

• Dimensions - Top of Ball Height: 18" From Ground

• Weight (Without accessories): 197 lb

• Frame: Marine grade galvanized steel

• Hitch: 2" Class II receiver

• Required Ball Size for Vehicle Attachment: 2"

• Recommended Tire Pressure: 35 to 40 PSI

• Tongue Weight (Unloaded): 25 lb

• Cross Bar Spread (Adjustable): 44" - 63"

What’s In The Box:

(2) 12" High Speed Wheels

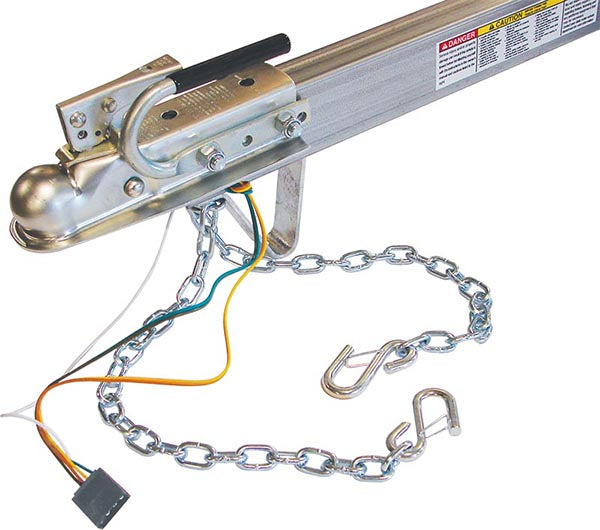

(1) Reinforced Steel Tongue

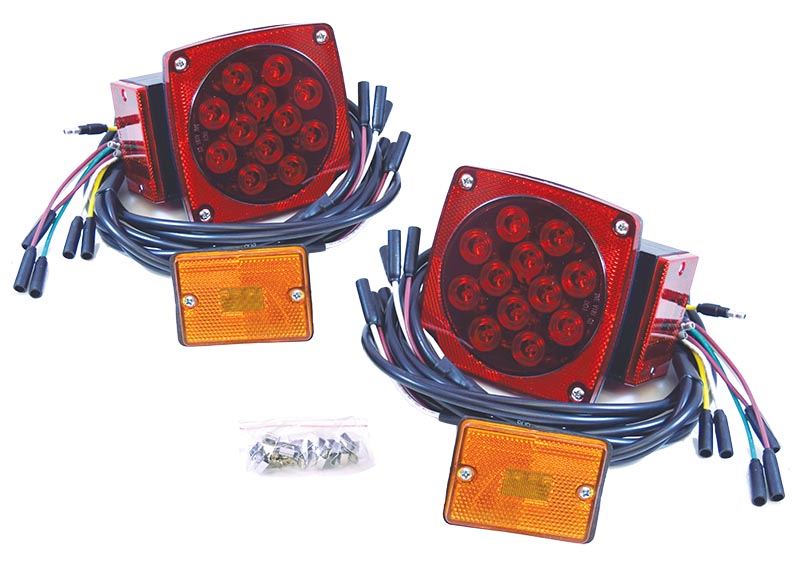

DOT Approved LED Lighting
Pre-Tested Electrical System
Pre-Fitted Chassis Components
(1) Instruction Manual & Registration Documentation
Total Shipment: 4 Cartons
