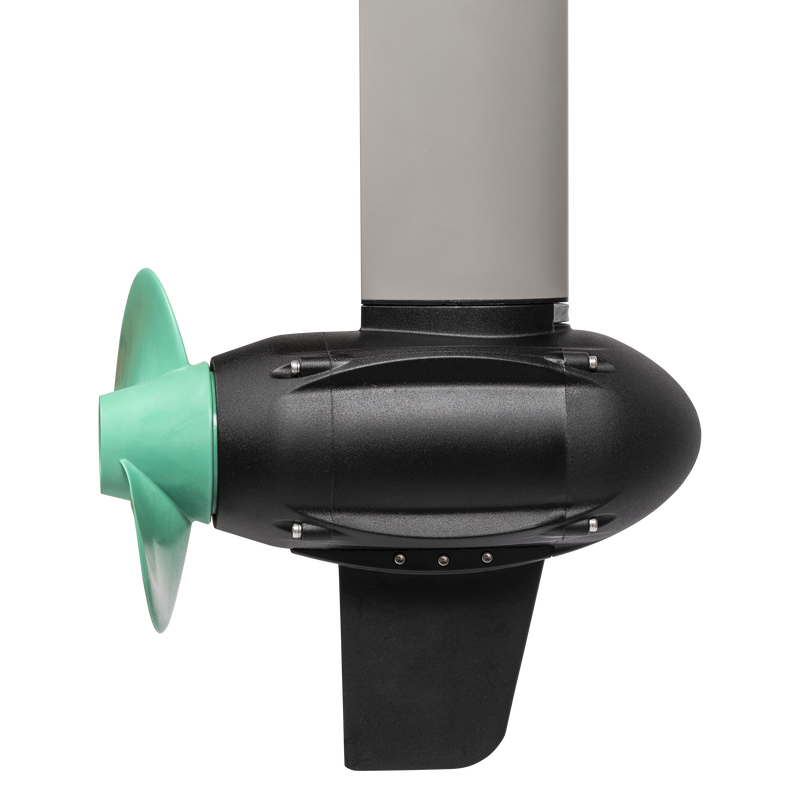

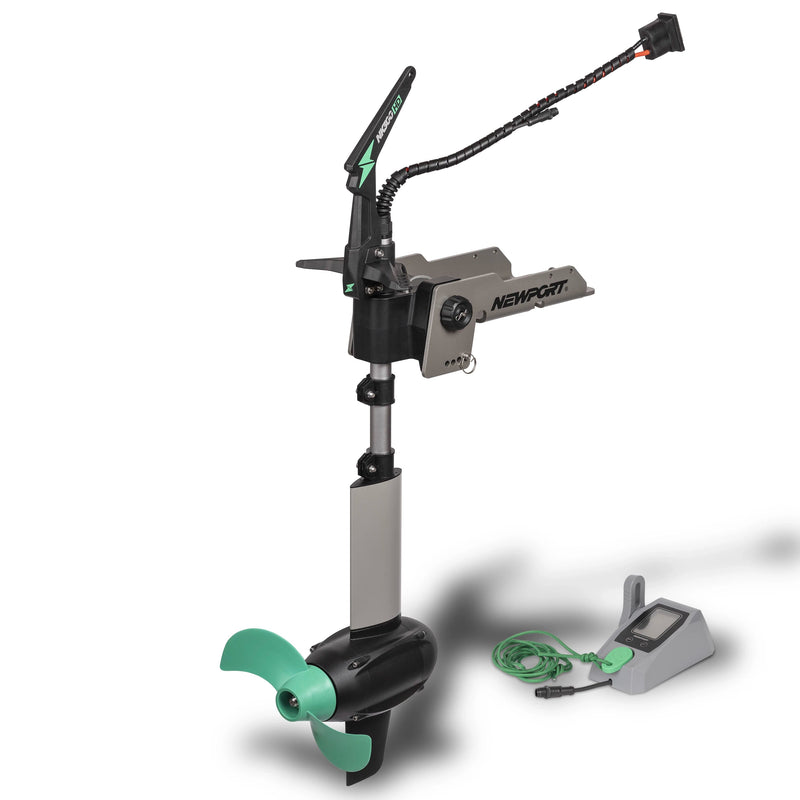

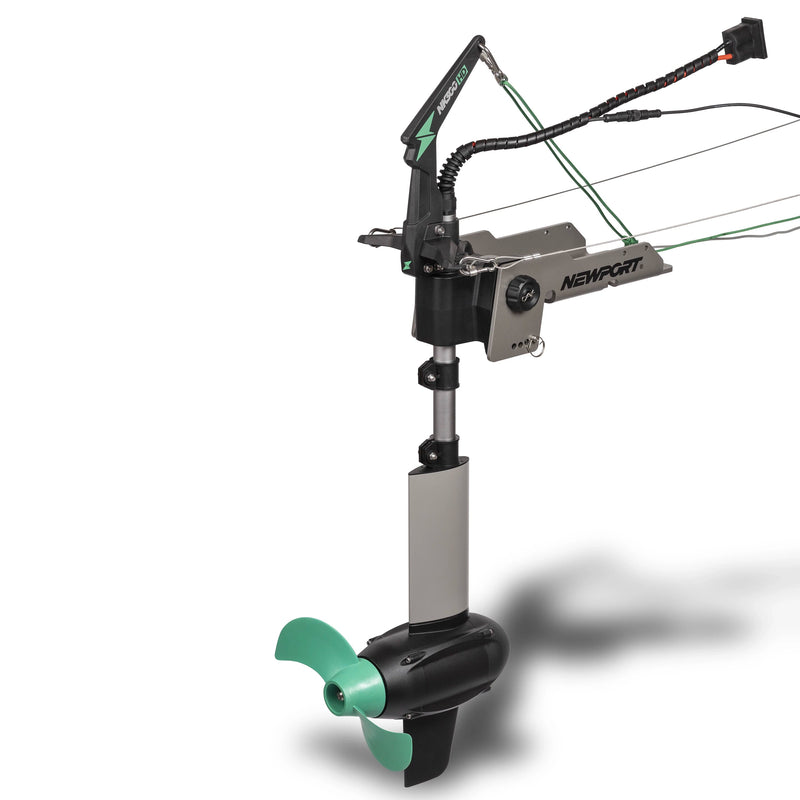

Newport NK300 HD Electric Kayak Motor

The NK HD Series represents the next generation of Newport’s flagship kayak motors. Built around a heavy-duty durability standard, the NK300 HD combines rugged composite materials, updated architecture for easy lifting and steering authority, precision bearings, overbuilt communication cable plugs for long-term reliability, a micro pulley system for low-profile stowage and mounting, a cable strain relief mechanism for longer cable life, and advanced conformal-coated internal electronics engineered for maximum reliability.

Designed for hardcore kayak anglers, it delivers 1300W of reliable brushless direct-drive power with unmatched speed and thrust, plus a redesigned throttle curve for smoother acceleration and precision control. Tournament angler trusted and proven on the water, this motor was built to explore where others won’t.

Features

• Fastest NK HD (3HP/1300W)

• Reinforced steering/retract system

• HD communication cable connectors

• Brushless direct drive

• Newport battery system compatibility

• Compact anodized Ronstan® block

• Cable strain relief mechanism

• Conformal-coated electronics

Included

• NK300 HD motor

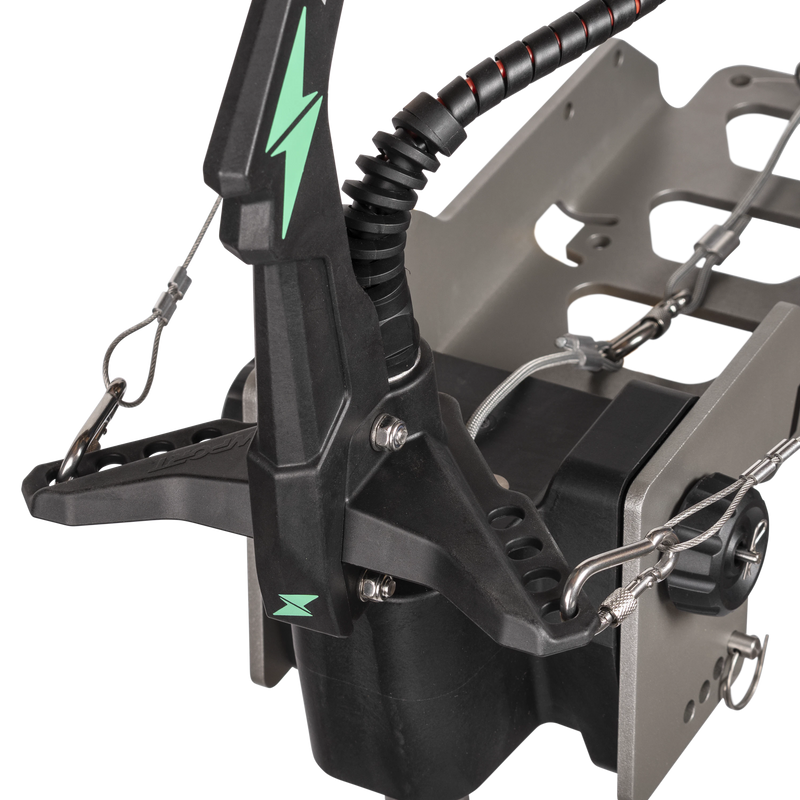

• NK HD Steering Triangle

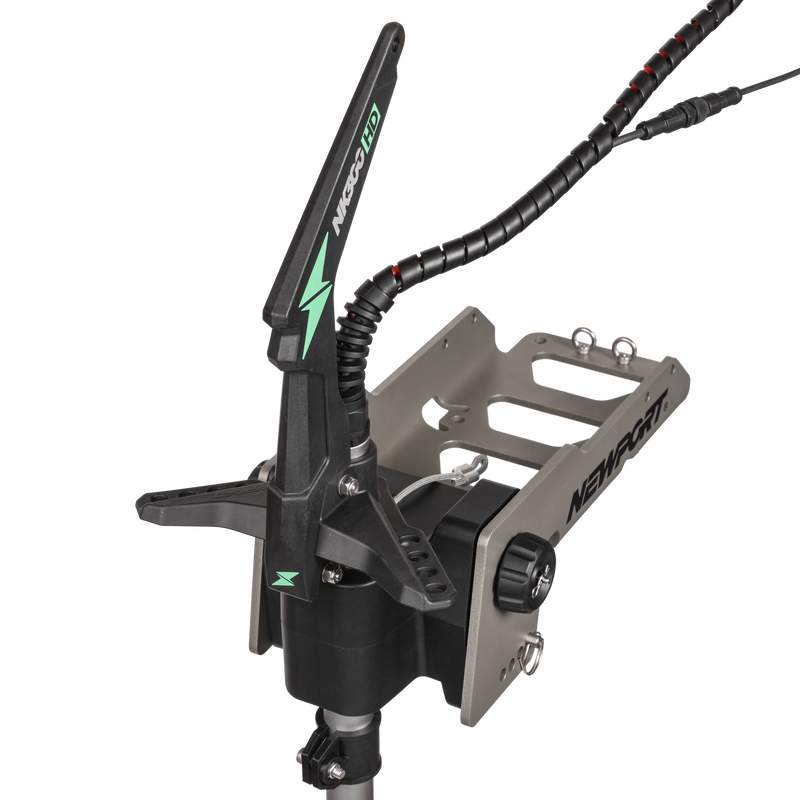

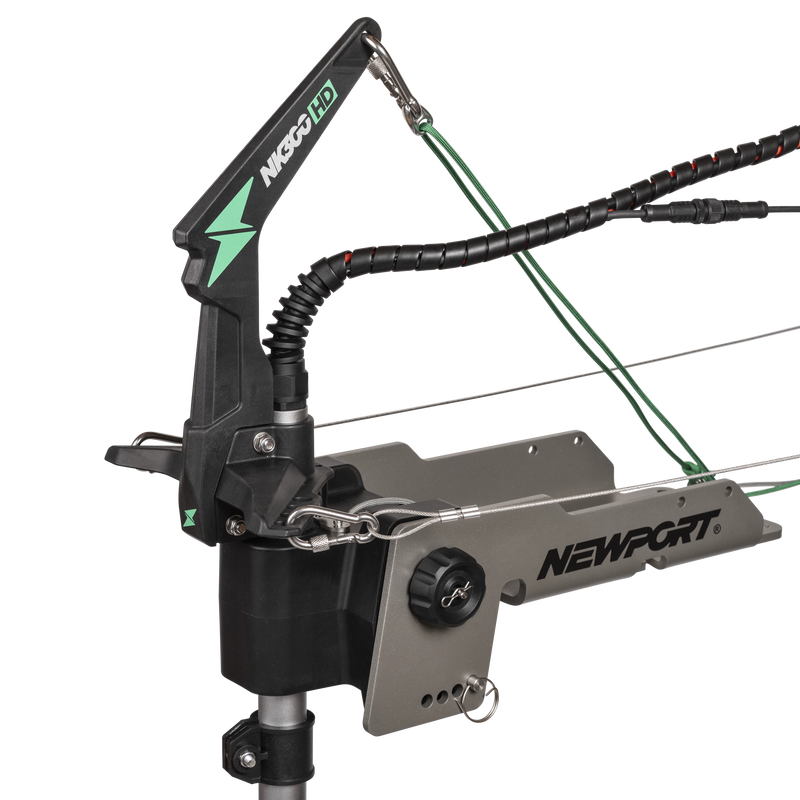

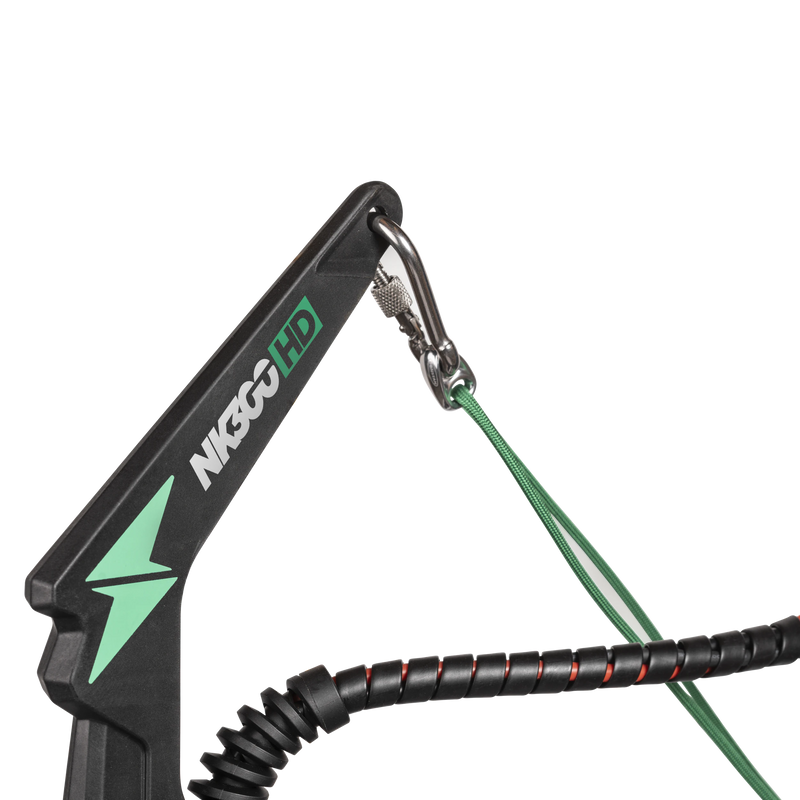

• NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block

• NK HD Communication Cable with oversized M12 connectors

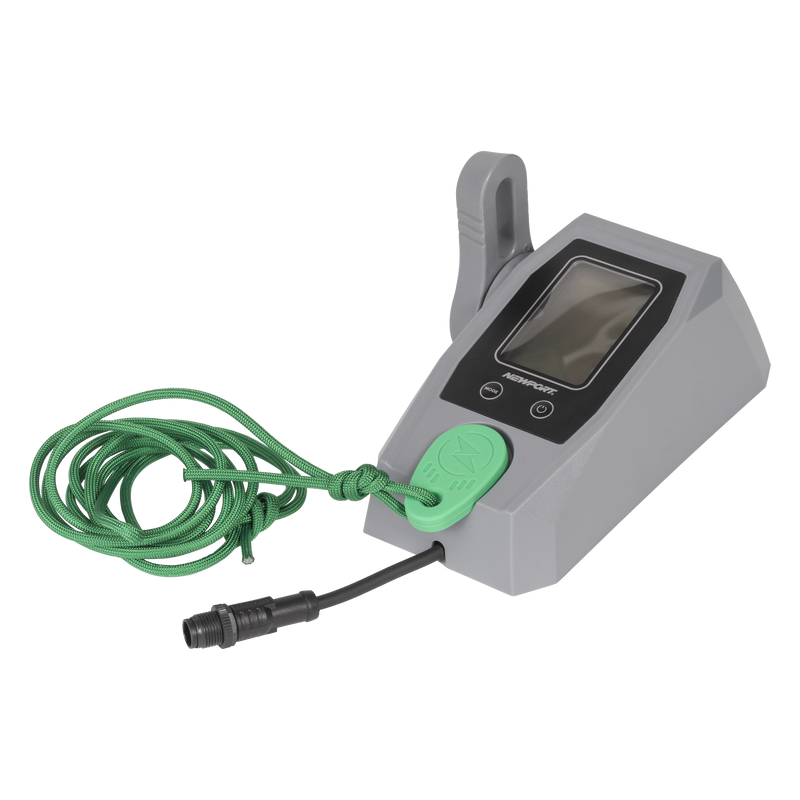

• NK HD Digital Speed Controller w/ Display

• Four Bolt Aluminum Motor Mounting bracket

• Height Adjustment Clamp

• Reverse Control Line and Handle

• Motor Lift Control Line and Handle

• Emergency Stop Key

• (2) Carabiner and pulley sets for rigging options

• Additional nylon cord

• Coated Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)

• Installation Kit

• Hardware installation kit with required tools
  BATTERY NOT INCLUDED

Details

• Power: 1300W (3HP equivalent)

• Input Voltage: 36V DC

• Amp Draw: 37 amps

• Motor Weight: 25.5 lbs

• External Battery: 36V DC 30 Ah minimum

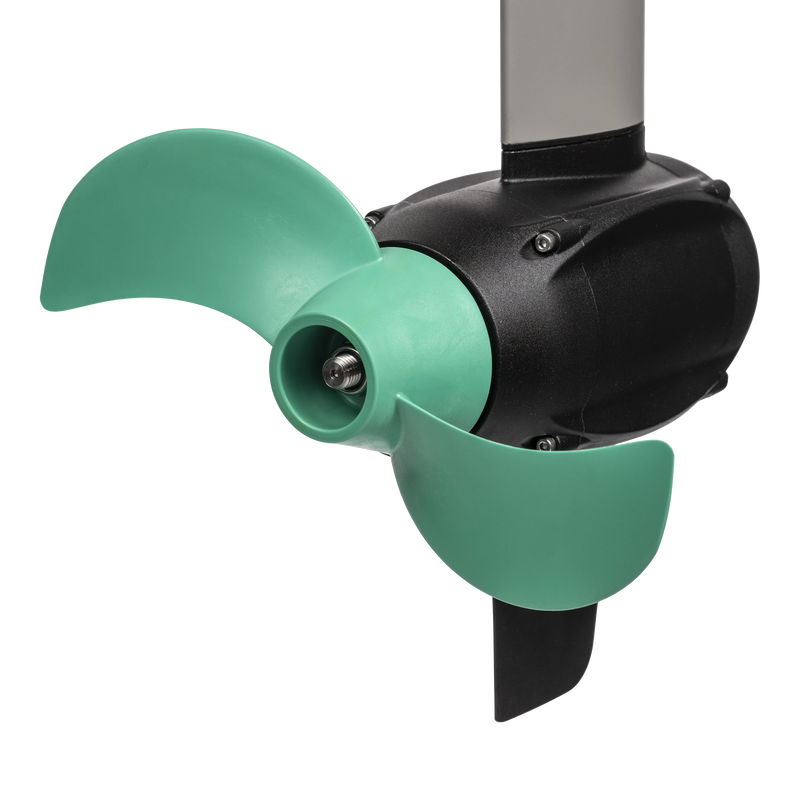

• Propeller: 9.8" 2-blade composite propeller

• Trim/Tilt Angle: 0°, 7°, 14°, 21° / 70°

• Shaft Length: 21.7"

• Brushless DC motor

• Direct Drive: Yes

• Maintenance-Free

• Sound Level: 40 decibels (out of water)

• Length of lower motor: 9.25"

• Diameter of lower motor: 4.5"
